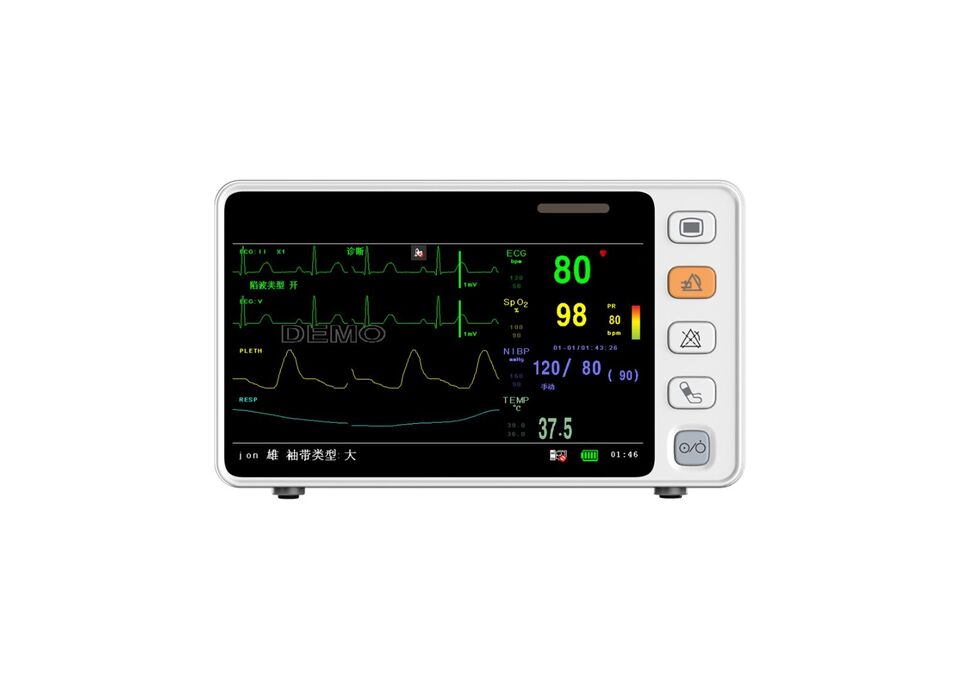

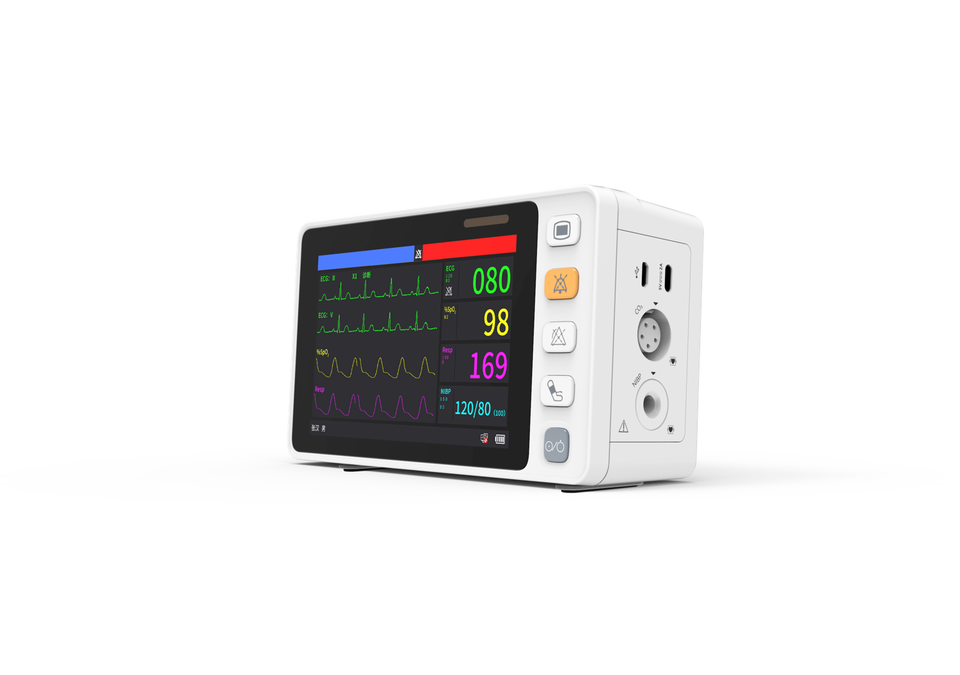

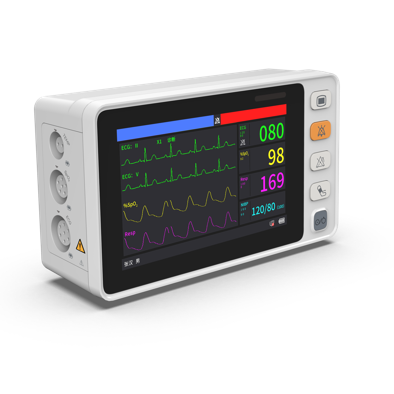

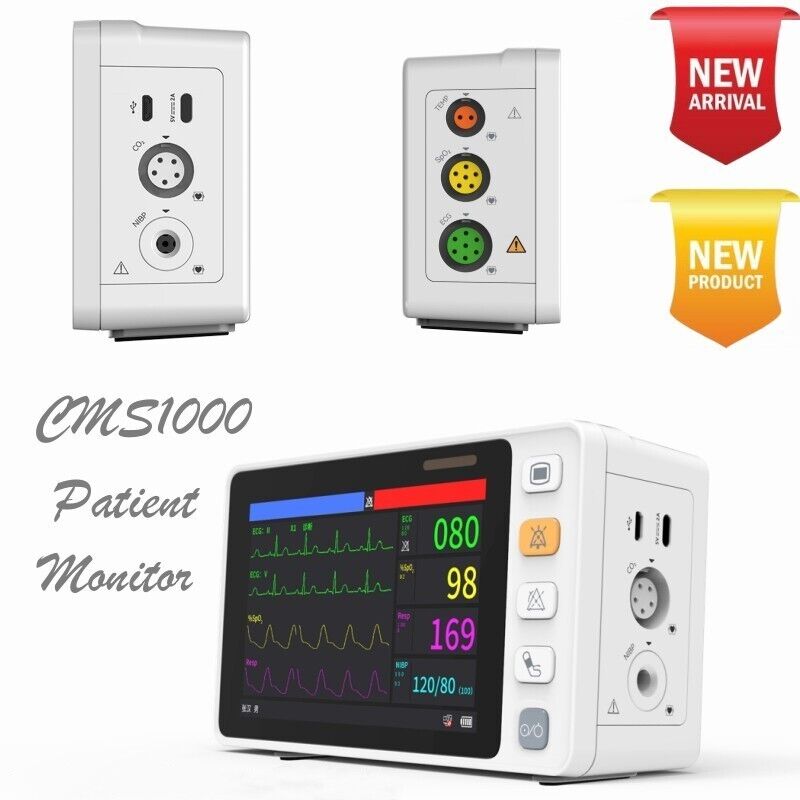

The monitor has abundant functions, which can be used for monitoring of adult, pediatric and neonate. It is powered by 100 V-240 V ～ 50 Hz/60 Hz. Users may select different parameter configurations according to requirements. It displays real-time data and waveform by 5'' color TFT LCD. It can be connected to Central Monitoring System via wireless network to form a network monitoring system.

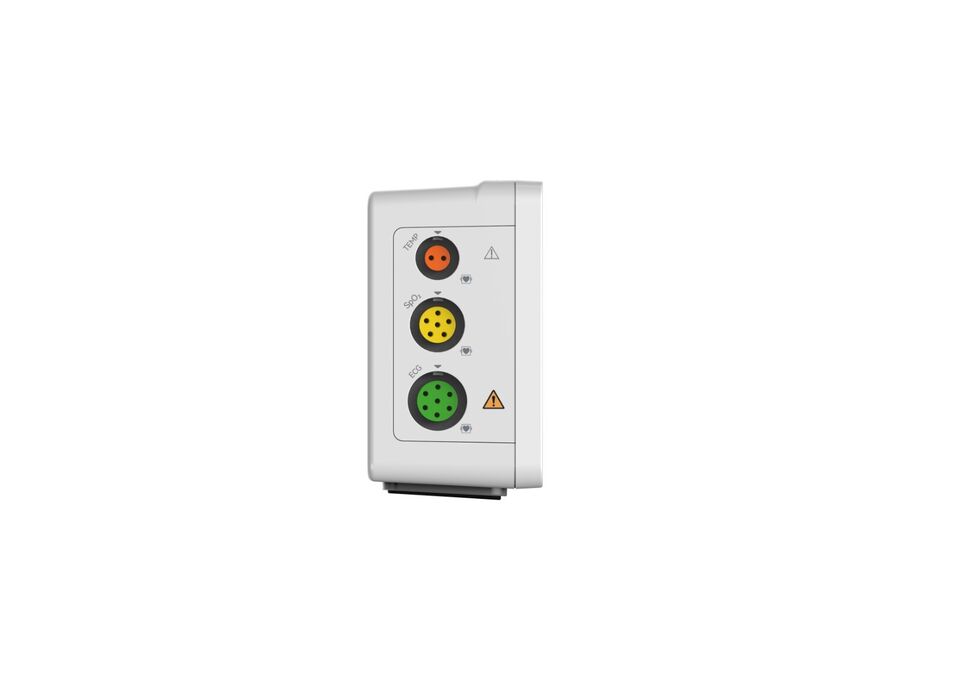

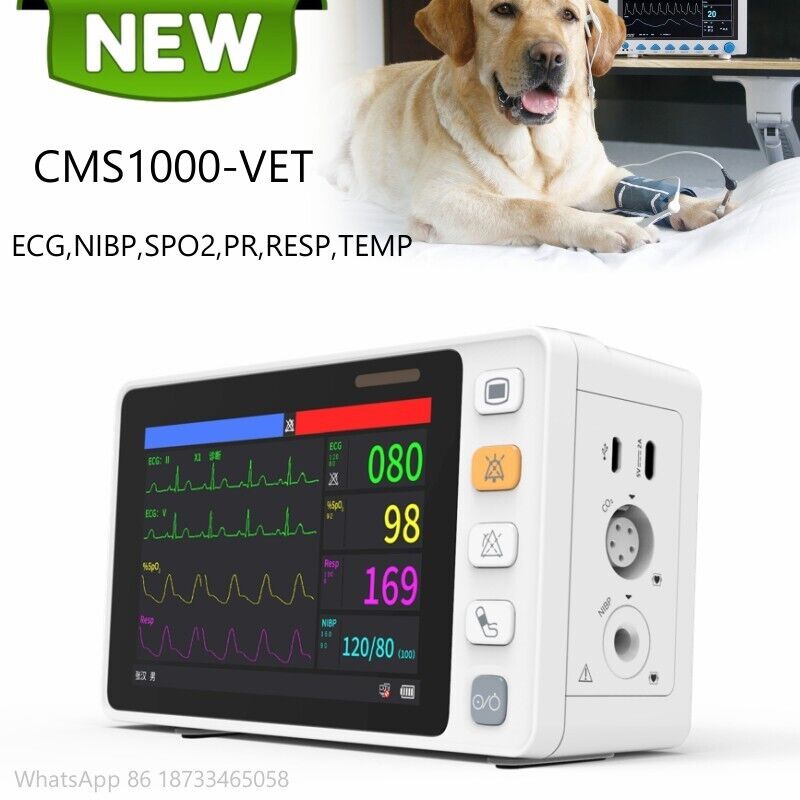

It can monitor such parameters as ECG, RESP, SpO2, PR, NIBP, TEMP and CO2 (optional). It integrates parameter measurement module and display into one device to form a compact and portable monitor.
Function
Parameters: ECG, RESP, SpO2, PR, NIBP, TEMP, CO2 (optional)
1)ECGHeart rate (HR)
ECG waveform
2)RESPRespiration rate (RR)
Respiration waveform
3)SpO2Oxygen saturation (SpO2)
Plethysmogram (PLETH) waveform
Pulse rate (PR)
Bar graph
4)NIBPSystolic pressure (SYS), Diastolic pressure (DIA), Mean pressure (MEAN)
5)TEMP
6)CO2 (optional) EtCO2, INSCO2, AWRR
It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation.
2)Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.
3)With standard interface, OxyCRG, big character interface and full-lead interface, convenient to observe.
4)Waveform, parameter color and location can be set optionally.
5)All operations can be completed by the buttons and touch screen.
6)Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of low perfusion.
7)NIBP measurement mode: Manual / AUTO / STAT, storage for 2400-group NIBP data.
8)Connect to Central Monitoring System by WiFi.
9)Built-in large-capacity battery, meets the requirements of long-term operation. AC/DC, achieves uninterrupted monitoring.
10)Anti-high frequency surgical unit, defibrillation-proof (special leads are necessary).
